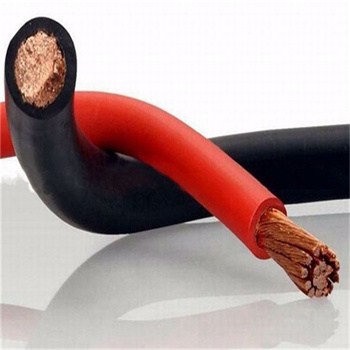

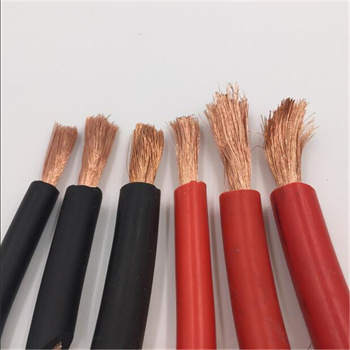

0AWG,2AWG,4AWG,6AWG,Red, Black colour,Flexible Copper DC Battery Cable

Application

battery cable is often used in main power applications in small cars, RV trailers, golf carts, and small marine crafts.

Also great for smaller solar cable applications.

Be aware that the total length of both the positive and negative cables have to be considered

Construction

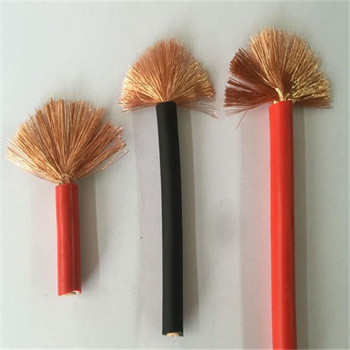

conductor: 99.9% pure copper strands wire

insulation: PVC

The average outside diameter of the cable is approximately 0.330 inches.

Rated for low voltage and battery use up to 60 volts DC and 25 Volts AC.

The internal copper stranded core is highly conductive maximizing current flow while still being highly flexible.

SGT American Standard Automotive Cable
	Conductor Construction			Insulation	Cable
Size	Nominal cross- section	No. and Dia. of Wires	Diameter	Thickness	Overall	Weight
			max.	Wall	Diameter	Approx.
				nom.	max.
AWG	mm2	No./mm	mm	mm	mm	kg/km
6	1 x 13.48	266/0.26	4.12	1.52	6.58	152
4	1 x 21.28	420/0.26	6.72	1.65	9.4	243
2	1 x 33.70	665/0.26	8.58	1.65	11.26	368
1	1 x 42.36	836/0.26	9.77	1.65	12.45	454
1/0	1 x 53.91	1064/0.26	11.1	1.65	13.78	568
2/0	1 x 67.04	1323/0.26	12.47	1.65	15.15	697
3/0	1 x 84.42	1666/0.26	14.1	1.98	17.3	886
4/0	1 x 106.76	2107/0.26	15.97	1.98	19.17	1105
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
