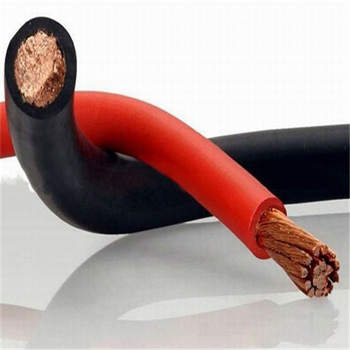

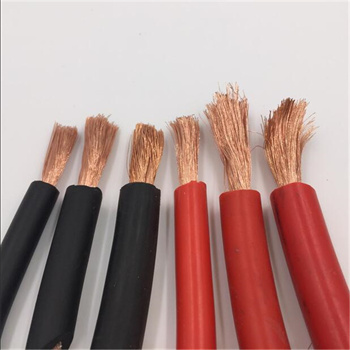

Flexible Copper DC Battery Cable
Application
battery cable is often used in main power applications in small cars, RV trailers, golf carts, and small marine crafts.
Also great for smaller solar cable applications.
Be aware that the total length of both the positive and negative cables have to be considered
Construction

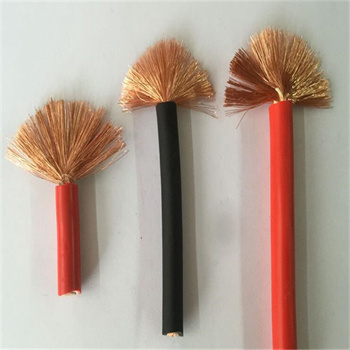

conductor: 99.9% pure copper strands wire
insulation: PVC
The average outside diameter of the cable is approximately 0.330 inches.
Rated for low voltage and battery use up to 60 volts DC and 25 Volts AC.
The internal copper stranded core is highly conductive maximizing current flow while still being highly flexible.
Sectional Area (mm2) | Core No./Dia. (No./mm) | Overall Diameter (mm) | Reference Weight (KG/KM) | Max. Conductor Resistance at 20º C (Ω/km) | Capacity for Long Time Working Condition (A) |
10 | 322/0.20 | 8.3 | 146/237 | 1.91 | 75 |
16 | 513/0.20 | 9.9 | 219/237 | 1.16 | 105 |
25 | 798/0.20 | 11.3 | 314/335 | 0.758 | 135 |
35 | 1121/0.20 | 12.5 | 419/442 | 0.536 | 170 |
50 | 1596/0.20 | 14.6 | 583/615 | 0.379 | 215 |
70 | 2220/0.20 | 16.9 | 798/839 | 0.268 | 265 |
95 | 2997/0.20 | 19.2 | 1059/1111 | 0.198 | 325 |
Feature
1.High flexibility properties.
2.Outstanding toughness and durability.
3.High resistance to cuts, tears and abrasion.
4.Resistance to oil, solvents and chemicals.
5.The permissible continuous operating temperature is 65°C.
