Cable Construction conductor: 99.99% oxygen-free copper wire, strand type; insulation: PVC;sheath: PVC
1,Application
This product is apply for AC450/750V or below power, and household electrical appliance,Instrument and apparatus, telecommunications equipment and lighting ect. fixed installation.
2,Operating Characteristic
1)The rated voltage of cable Uo/U is:450/750V,300/500V,300/300V
2)The conductor of electric wire cable allows working temperature <70°C for long time
3) The installment temp of cable should not less than 0°C, OD<25mm cable, allowed bending radius should ≥4D,OD≥25mm, allowed bending radius should≥6D

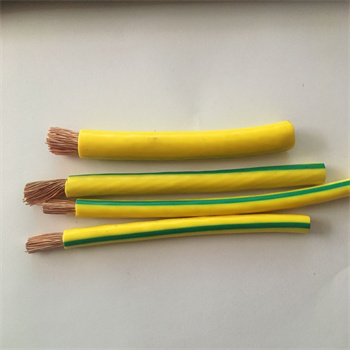

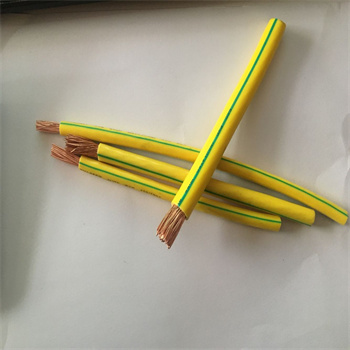

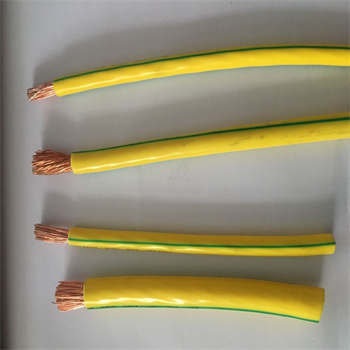

Yellow Grounding Wire PVC Insulated Earthing Copper Cable | ||||||
| section area (mm2) | Class of Conductor | Insulation Thickness(mm) | Sheath Thickness (mm) | OD cable (mm) | Weight of cable (Kg/km) | Max. DC-resist conductor 20℃(Ohm/km) |
| 1.5 | 5 | 0.9 | 0.8 | 4.91 | 38 | 13.3 |
| 2.5 | 5 | 0.9 | 0.8 | 5.4 | 49 | 7.98 |
| 4 | 5 | 1 | 0.9 | 6.25 | 71 | 4.95 |
| 6 | 5 | 1.1 | 0.9 | 7.6 | 101 | 3.3 |
| 10 | 5 | 1.2 | 1.1 | 8.56 | 152 | 1.91 |
| 16 | 5 | 1.2 | 1.1 | 9.8 | 215 | 1.21 |
| 25 | 5 | 1.4 | 1.1 | 11.5 | 307 | 0.78 |
| 35 | 5 | 1.4 | 1.1 | 12.5 | 405 | 0.554 |
| 50 | 5 | 1.4 | 1.4 | 15.1 | 580 | 0.386 |
Technical Information:
1.U0 /U:300/500V,450/750V
2.Standard Applied:IEC 60227,BS 6004,VDE0281,GB/T 5023,JB/T8734
3.Max.Operating Temperature:70°C,can be 90°C,105°C as per requirent
4.Conductor:Class 1/2 Plain Annealed copper wire,solid or stranded
5.Insulation:PVC
6.Cores:Single core
7.Range of Nominal cross section:0.75~240sqmm
8.Jacket:Without Jacket
9.Color:Black,Brown,Grey,Blue,Green/Yellow or orthers on request
10.Flame ratardance,fire resistance and other property can be available
11.Packing:100 meter/roll or as per requirement
12.Certification:ISO9001,ISO14001,OHSMS18001,CE,CB,CCC,SAA,etc.
13.OME can be available
